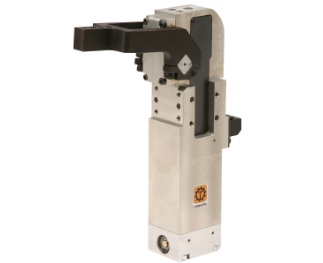

APH 40.5... ALPHA CLAMP

产品长

产品宽

产品高

产品重量

下载专区

ACCESSORIES

R... Retaining clip APH 40.5 V Z A60.pdf

Clamp arm A60 for clamps size 40.5.PDF

VD... Flow-Control Valve.pdf

WK... Right-angled coupling.pdf

CAD ACCESSORY DATA

Step Spannarm Clamp arm Gr. 40.5 A60.ZIP

Catia V5 3D Spannarm Clamp arm Gr. 40.5 A60.ZIP

CAD DATA

Catia V5 3D APH 40.5 H BR2 A00 T12.zip

Catia V5 3D APH 40.5 H BR5 LW A60 T24...ZIP

Catia V5 3D APH 40.5 H BR2 A60 T12.zip

Catia V5 3D APH2 40.5 H BR2 A60 T12.zip

Catia V5 3D Endlagenrasteretaining clip APH 40.5 V Z RL.zip

Catia V5 3D APH 40.5 BR2 A10A11A12.ZIP

Step APH 40.5 BR2 A10A11A12.ZIP

Step APH 40.5 H BR2 A00 T12.zip

Step APH 40.5 H BR2 A60 T12.zip

Step APH 40.5 H BR5 LW A60 T24...ZIP

Catia V5 3D Endlagenrasteretaining clip APH 40.5 V Z RR.zip

DATA SHEET

APH 40.5 H BR2 A3.. with clamp arm and jaw.pdf

APH 40.5 H BR2 LW A60 Lightweight design.PDF

APH 40.5 H BR5 LW A60.PDF

APH 40.5 H BR2 A60 connection compatible to sizes 50, 63.PDF

MANUAL

APH 40,40.5 H BR5.PDF

APH 40,40.5 H BR2.pdf

OTHER SPECIFICATIONS

ALPHA series air consumption.PDF

APH Allowed clamp arm weight against clamp arm length.pdf

APH 40... BR2 Cylinder strokes.pdf

PRESENTATIONS

APH 40.5 H BR5 LW.PDF

PRODUCT-APPLICATION-PICTURES

APH 40.5 H BR2 A60.TIF

SPARE PARTS DOCUMENTATION

APH 40.5 H BR2.pdf

APH 40.5 H BR5 LW.PDF

产品描述：

带曲线驱动杆机构的紧凑型夹紧器

机械自锁结构

封闭的高强度铝合金壳体，

集成Ø40的扁缸

带标准安装孔的叉型夹臂

打开角度从15°-135°无级可调

打开位置气动缓冲

可选：电感传感器（T12），内置式感应，防焊渣

智能感应磨损和部件识别(T60)

手柄（Z）
